Pressure Washer Nozzle Guide: Choosing the Right Spray Tip and Orifice

Wrong tip, damaged surface. Match the nozzle to your machine's flow and the job.

Shop now

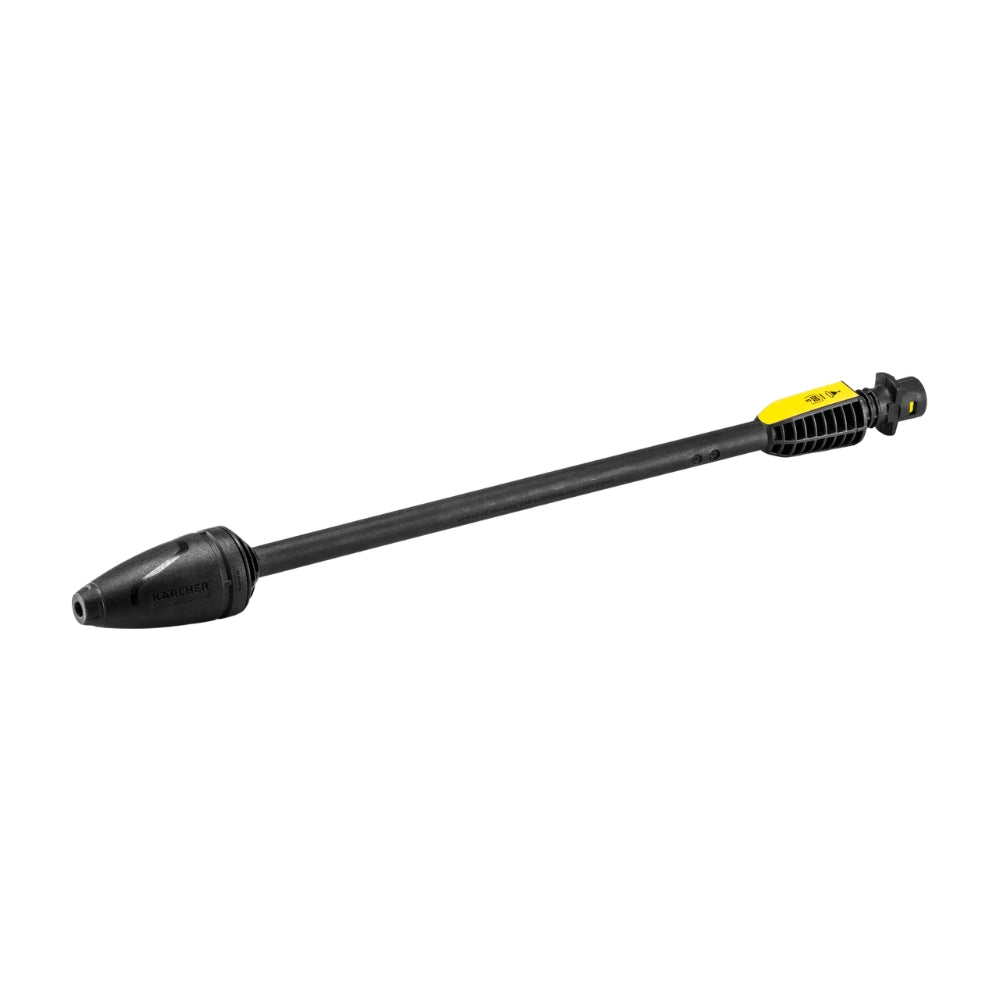

Karcher DB120 Dirt Blaster Rotary Nozzle for K2 & K3 Pressure Washers (2.642-727.0)
Posted on by John Wei

A pressure washer nozzle does two jobs at once. Its spray angle decides how the water hits the surface, and its orifice size decides whether the pump can build its rated pressure at all. Get the angle wrong and you either streak the job or gouge the surface; get the orifice wrong and the machine runs in bypass or loses pressure. This guide covers tip angles, sizing the orifice to your pump's flow and pressure using manufacturer and distributor charts, and nozzle selection for rotary surface cleaners. For the colour code on quick-connect tips, see our pressure washer nozzle colour guide.

How do you choose the right pressure washer nozzle?

Start with the orifice: find your machine's rated flow and working pressure, then read the matching orifice size from a nozzle chart. Then choose the spray angle for the job: 0° for concentrated spot work, 15° for stripping, 25° for general cleaning, 40° for rinsing, and the soap tip for low-pressure chemical application.

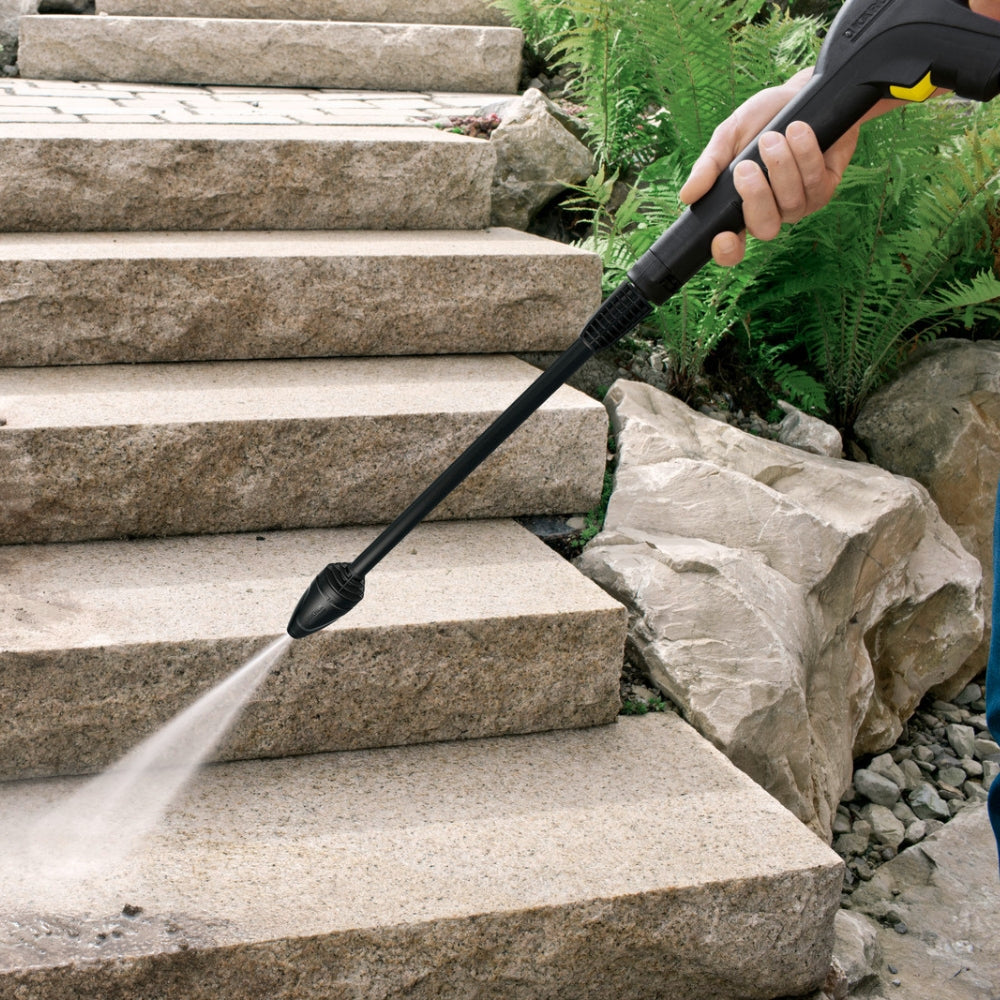

Pressure Washer Nozzle Guide: Choosing the Right Spray Tip and Orifice

Both numbers are usually printed on the tip. A "25045" nozzle, for example, is a 25° fan with an 045 orifice. The two halves are chosen separately, and the sections below explain each.

Spray angles and what each one is for

Pumps Australia's nozzle selection chart gives a plain guide to angles: 0° gives a pencil or near-parallel jet for concentrated cleaning, 15° a narrow spray with narrow coverage, 25° a slightly wider fan that is a good all-round nozzle and often supplied with new machines, and 40° the widest pattern for large areas that do not need much force.

Tip Pattern Typical use (per distributor guides) Caution
0° Pencil jet Stubborn spots on concrete, steel, caked mud Can gouge timber and damage fragile surfaces
15° Narrow fan Surface preparation, stripping Narrow coverage, concentrated force
25° Medium fan Flushing dirt, mud and grime; general cleaning Common default tip
40° Wide fan Rinsing and moderate washing of large areas For areas that do not need much force
Soap Low-pressure spray Applying detergent before washing Not for cleaning on its own
Turbo Rotating 0° jet Caked mud, concrete, peeling paint Faster cleaning, not more pressure

B.A.R. Group's nozzle selection guide adds that a 0° nozzle needs care to avoid gouging wood or damaging fragile surfaces, the 25° tip suits flushing dirt, mud and grime, and the 40° tip suits rinsing and moderate washing.

What the orifice number means

The orifice number is a flow rating. B.A.R. Group explains that spray nozzles are rated by their flow in US gallons per minute at 4,000 psi: an 045 nozzle delivers 4.5 USGPM at 4,000 psi, an 030 delivers 3.0 USGPM, and an 060 delivers 6.0 USGPM. The same orifice passes less water at lower pressure, which is why charts list flow for each pressure column.

The angle does not change the orifice rating. Because the rating is a flow figure, a 15045 and a 40045 share the same orifice rating; only the fan shape differs. That is why kits are often sold as a set of angles in one orifice size, and why the orifice has to match the machine first.

Sizing the orifice to your pump

B.A.R. Group sets out the two failure modes. A nozzle that is too small means the machine permanently switches into bypass or off. A nozzle that is too large means the machine has a small output and lower pressure. To pick the right size:

  1. Find the machine's rated flow (L/min) and working pressure (bar or psi) on its plate or manual.
  2. On the chart, find the pressure column nearest your working pressure.
  3. Read down to the flow nearest your rated flow.
  4. Read across to the orifice size.

Here are three lookups exactly as the published charts show them:

Machine rating Chart column used Nearest flow on chart Orifice Source
11 L/min at 200 bar 200 bar / 2,900 psi 11.0 L/min 035 Blue Tongue Industries chart
15 L/min at 3,000 psi 2,900 psi 14.6 L/min 045 B.A.R. Group worked example
15 L/min at 280 bar (about 4,000 psi) 280 bar / 4,080 psi 15.5 L/min 040 Pumps Australia worked example

The same 15 L/min needs a smaller orifice at higher pressure. Blue Tongue Industries' nozzle tip size chart also lists the hole diameter for each size, from about 0.86 mm for an 02 to 1.40 mm for an 045. Use the chart from your machine or nozzle supplier where one exists, because charts vary slightly between makers. For how orifice wear and spray angle affect pressure at the surface, see nozzle orifice, spray angle and effective pressure.

DeWalt 4500 psi quick-connect pressure washer nozzle 5-pack
DeWalt quick-connect nozzle 5-pack: listed 0°, 15°, 25°, 40° and soap tips, 1/4-inch QC plug, rated up to 4,500 psi. Confirm the orifice size suits your pump before fitting.

Turbo nozzles and "effective pressure"

A turbo or rotary nozzle spins a 0° jet in a cone, so it combines the cutting action of a pencil jet with wider coverage. B.A.R. Group says the turbo increases cleaning speed, not pressure, and calls "effective working pressure" claims misleading: a pump rated at 3,000 psi stays a 3,000 psi pump whatever is fitted to the lance. A turbo nozzle still needs the right orifice for the pump. The remover manufacturer in our graffiti guide also warns against turbo nozzles on masonry, where a fan tip at distance is gentler.

Surface cleaners: nozzles on a spinning bar

A rotary surface cleaner splits the flow across two or more nozzles on a spinning bar, so each nozzle must be smaller than the single gun nozzle. Makinex's DPW4000 operator's manual gives clear rules for its surface cleaner:

  • It ships with a set of 25015 nozzles (25° with a 1.5 orifice).
  • The minimum orifice in the surface cleaner is half the size used in the pressure washer: if the pressure washer uses a size 5, use a size 2.5 in the surface cleaner.
  • Use a 15° to 25° spray pattern: anything under 15° can damage the surface, and anything over 25° may stop the bar rotating.
  • Screw nozzles into the bar with the spray fan parallel to the bar.

Those rules apply to the Makinex unit; check your own surface cleaner's manual, because bar length and nozzle count vary. Our guide to surface cleaner versus gun nozzle matching covers this in more depth.

Kerrick Whirl-A-Way 20 inch stainless steel surface cleaner with wheels
Kerrick Whirl-A-Way KSC20SS-W: listed 530 mm cleaning path, two rotor arms, up to 4,000 psi and 82 °C. The listing does not state nozzle sizes, so confirm them against your pump.

Signs the nozzle is wrong or worn

Nozzles wear. Pumps Australia notes that high-pressure water slowly enlarges the nozzle hole and changes the spray pattern, which can go unnoticed. Common signs:

  • Gradual pressure loss and a wider, ragged fan: a worn, oversized orifice.
  • Pulsing at the gun: Makinex's manual says a partially clogged tip makes pump pressure pulsate. Clean it after shutting down, turning off the water and releasing trapped pressure, using a small paper clip and a back-flush.
  • Machine cycling into bypass: orifice too small for the pump.

Makinex suggests replacing nozzles monthly on machines in regular use and every three months for intermittent use, and states that using an incorrect or worn nozzle voids its warranty. For a wider fault-finding sequence, see why a pressure washer loses pressure.

Safety when changing tips

A pressure washer jet can pierce skin and inject water and contaminants. WorkSafe Victoria's high-pressure water jetting safety alert lists skin penetration, flying debris, and a flailing hose or out-of-control nozzle among the main risks, and says eye protection should always be worn near jetting work. Makinex's manual adds: never place hands in front of the nozzle, and always point the gun in a safe direction and squeeze the trigger to release pressure every time the engine stops. Change tips only once the engine is off and the pressure has been released.

Frequently asked questions

What does 25045 mean on a nozzle?

It is a 25° spray angle with an 045 orifice. The orifice number is the flow rating: an 045 nozzle delivers 4.5 US gallons per minute at 4,000 psi.

What happens if the nozzle is too small?

According to B.A.R. Group, a nozzle that is too small makes the machine permanently switch into bypass or off. One that is too large gives lower pressure and a weak output.

Do turbo nozzles increase pressure?

No. B.A.R. Group says a turbo nozzle increases cleaning speed, not pump pressure. It is a rotating 0° jet and still needs the correct orifice size.

What nozzle size goes in a surface cleaner?

Check the surface cleaner manual. Makinex says the minimum orifice is half the pressure washer's size and recommends a 15° to 25° pattern with the fan parallel to the bar.
